Model no
271

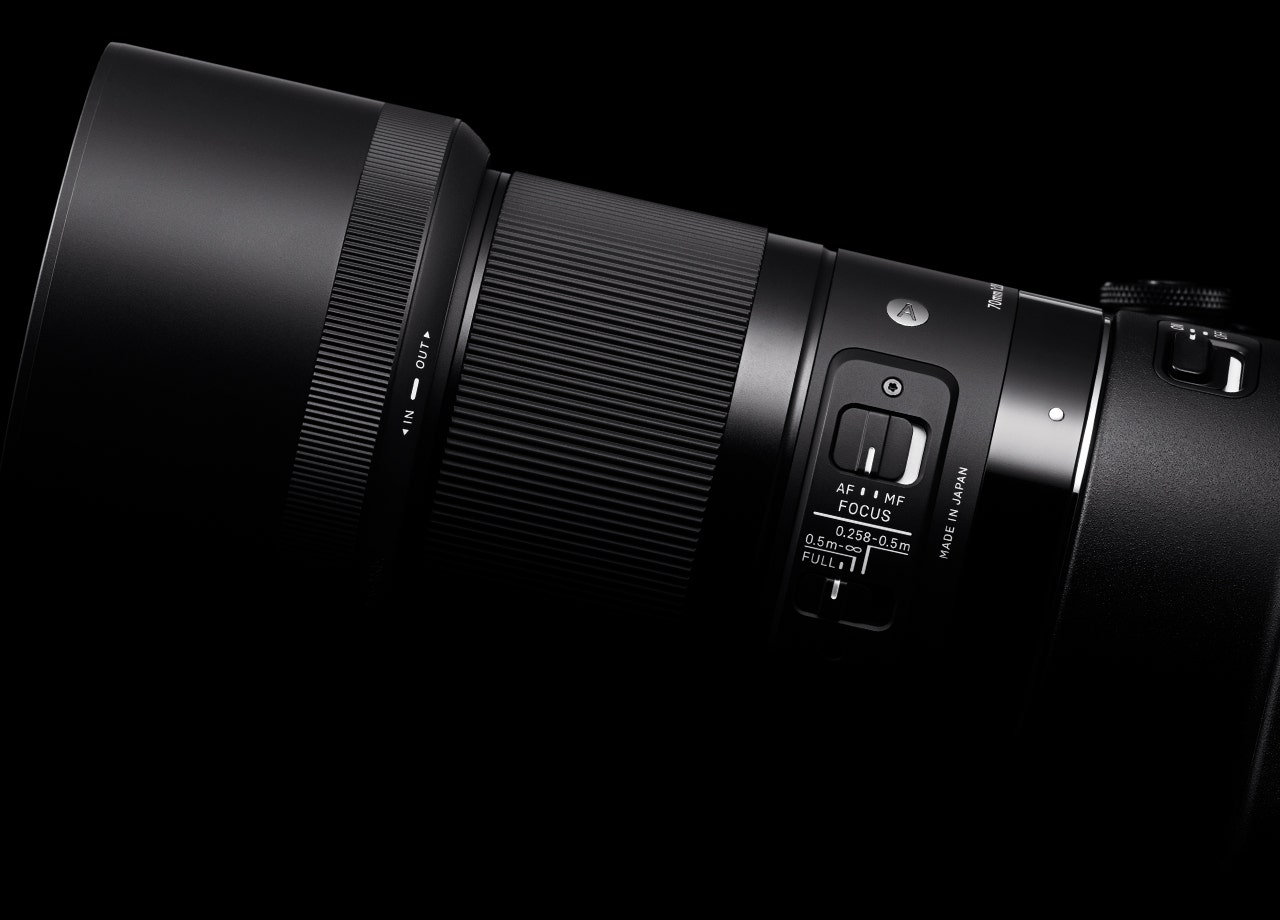

70mm F2.8 DG MACRO | A

The first macro to join the Art line

• First true 1:1 Macro Art lens with stunning resolution and clarity
• Focus-by-wire system for comfortable and precise focusing
• Compatible with Sony E-mount cameras with full-frame sensors
• Compatible with Canon Lens Aberration Correction
• Compatible with SIGMA ELECTRONIC FLASH MACRO EM-140 DG (adapter required)
• Compatible with SIGMA TELE CONVERTERS (Execpt for the Sony E-mount)

As low as 4 100 DKK

The Sigma 70mm F2.8 DG Macro is the first prime macro lens to be adorned with the Art badge. Fully redesigned to deliver exceptional 1:1 (life-sized) magnification, the 70mm F2.8 DG Macro lens features a new coreless DC motor for extremely smooth autofocus performance. Prioritizing optical performance, the lens features an extending, floating, two-group focus mechanism. This configuration minimizes aberration to produce optimal results at any focus distance.

The Canon EF mount version of the lens is compatible with Canon's Lens Aberration Correction which performs in-camera corrections of peripheral illumination, chromatic aberrations, distortion, and more, to further enhance image quality.






Specifications
More Information
Product LinesArt
Construction13 Elements in 10 Groups
Lens TypeMacro
Sensor SizeFull Frame
Angle of view34.3°
Number of diaphragm blades9 (Rounded Diaphragm)
Minimum apertureF"F22
Minimum focusing distance25.8 cm
Maximum magnification ratio1:1
Dimensions (diameter x length)

Sigma SA-mount
Sony E-mount
L-Mount

⌀ 70.8 mm x 105.8 mm
⌀ 70.8 mm x 131.8 mm
⌀ 70.8 mm x 129.8 mm

Weight (g)

Sigma SA-mount
Sony E-mount
L-Mount

665 g
570 g
605 g

Filter diameter49mm
Edition numberA018
AccessoriesCase and Lens Hood (LH708-01) supplied
EAN

Sigma SA
Sony E
L-mount
Canon EF

085126271565
085126271657
085126271695
085126271541

DG - DG for Digital Full Frame and APS-C

* The appearance, specifications, and the like of the product are subject to change for improvement without notice.

** This product is developed, manufactured and sold based on the specifications of E-mount which was disclosed by Sony Corporation under the license agreement with Sony Corporation.

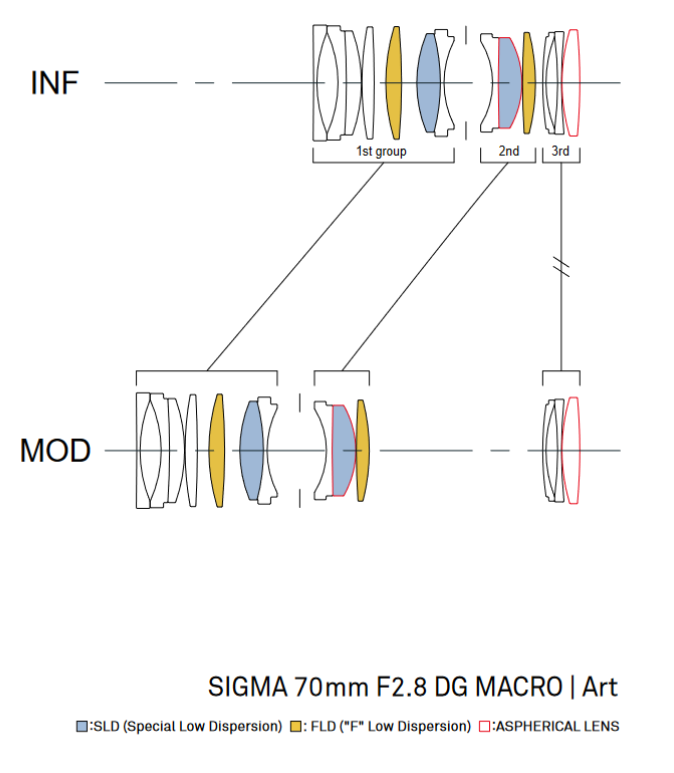

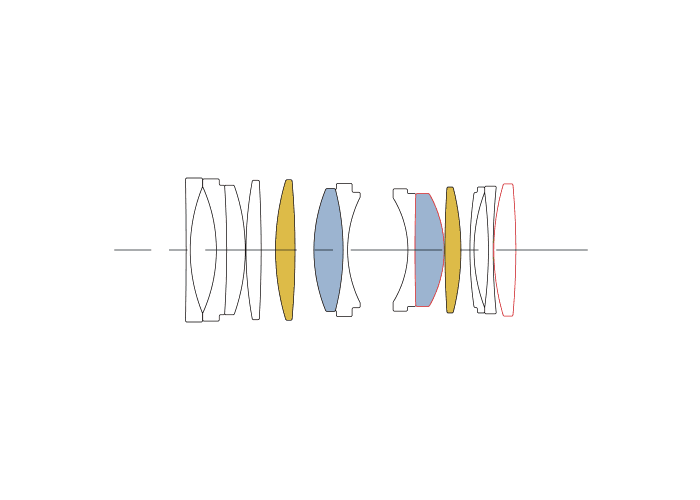

Lens Construction

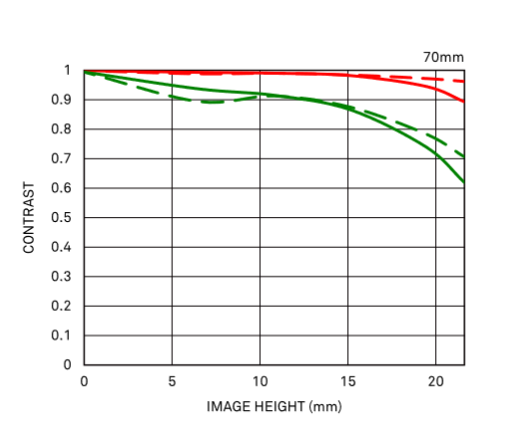

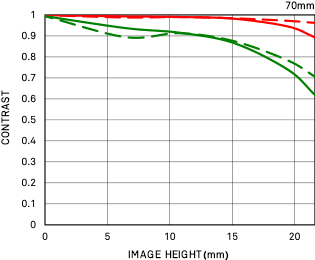

Geometrical MTF Chart

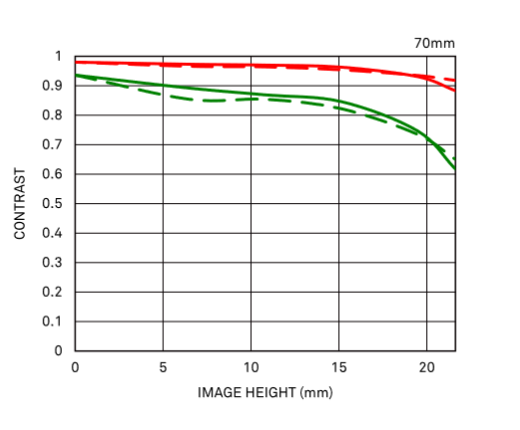

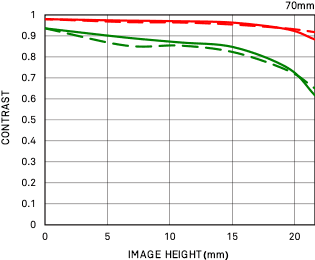

Diffraction MTF Chart
