Model no
185
500mm F4 DG OS HSM
50 500 DKK
A telephoto flagship
- Exceptional image quality
- Magnesium Alloy components
- Dust and Splash Proof
- Included accessories: LH1388-01Carbon Fiber Hood, Filter holder with 46mm WR Protector, caps, case
Few in Stock
The Sigma 500mm F4 DG HSM OS Sports lens is the first prime telephoto DSLR lens in Sigma's critically acclaimed Sports line. Designed for professional photographers, the 500mm F4 Sports is a rugged dust and splash proof lens created to weather the harsh conditions that many photographers find themselves in when shooting outdoors.
Exceptional image quality is achieved through rigorous optical design testing while autofocus and quality is maintained when paired with the Sigma TC-1401 1.4X and TC-2001 2X teleconverter. An advanced Optical Stabilizer (OS) touts a two mode switch, #1 for handheld photography, #2 for panning and tracking vertically and horizontally.
The new Hyper Sonic Motor (HSM) touts 1.3X the torque of previous models for fast and snappy focusing while the state-of-the-art electromagnetic diaphragm is included for Nikon mounts and provides a new degree of performance for high speed shooting. USB Lens Dock and Sigma Optimization Pro allow for lens customization including personalized focus limiters, 4 zone micro focus tuning, OS preview behavior, AF performance enhancement. Transverse chromatic aberration is greatly controlled through optical design and 500mm F4 Art allows for rear filters to be used.
Specifications
| Product Lines | Sports |
|---|---|
| Construction | 16 Elements in 11 Groups |
| Lens Type | Telephoto |
| Sensor Size | Full Frame |
| Angle of view | 5° |
| Number of diaphragm blades | 9 (ümar diafragma) |
| Minimum aperture | F32 |
| Minimum focusing distance | 350 cm |
| Maximum magnification ratio | 1:6.5 |
| Dimensions (diameter x length) | Canon EF ⌀ 144.8 mm x 380.3 mm |
| Weight (g) | Canon EF 3310 g |
| Filter diameter | 46mm (rear drop in) |
| Edition number | S016 |
| Supplied Accessories | Lens Hood LH1388-01, Lens Cover LC-185E, Rear Filter Holder w/ WR Protector Filter 46mm, Rear Cap LCR II, Case LS-185L |
| Accessories | WR Protector LPT-11 (for front), Drop in WR C-PL Filter RCP-11, Tele Converter TC-1401, Tele Converter TC-2001, Tripod Socket TS-81, USB-dock UD-01, Mount Converter MC-11, Mount Converter MC-21 |
| EAN | Canon EF 085126185541 |
HSM - Hyper-Sonic Motor
DG - DG for Digital Full Frame and APS-C
* The appearance, specifications, and the like of the product are subject to change for improvement without notice.

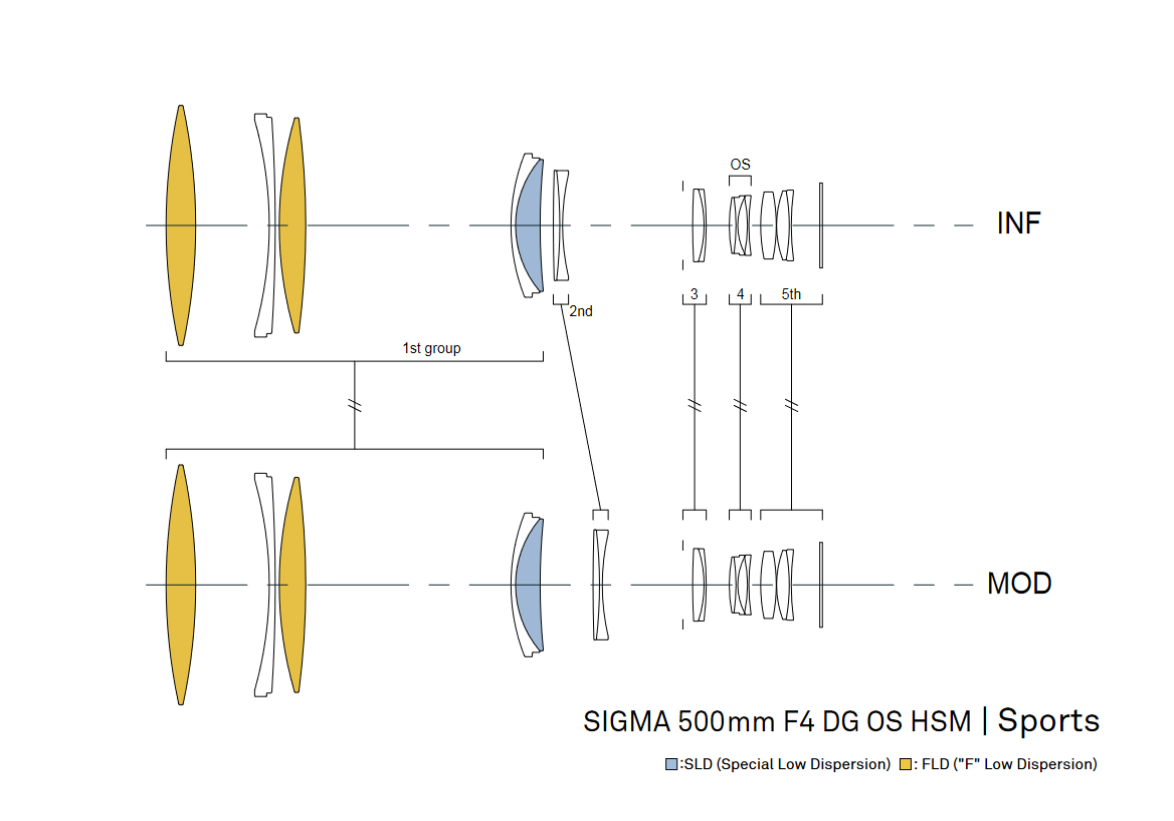

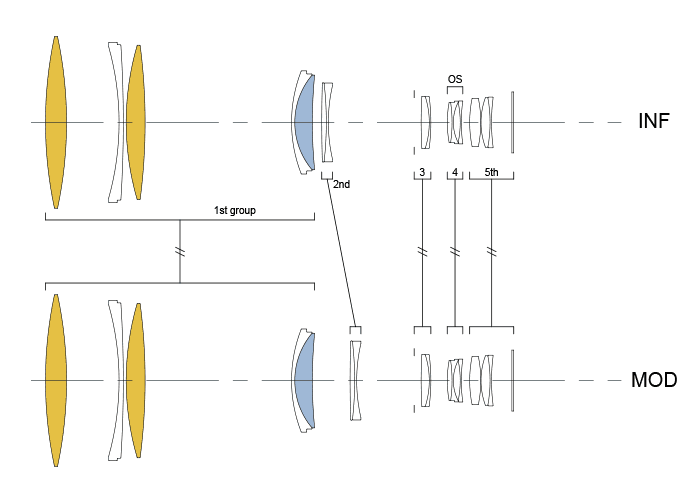

Lens Construction

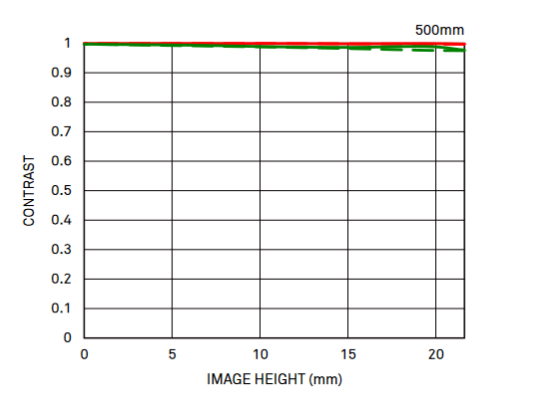

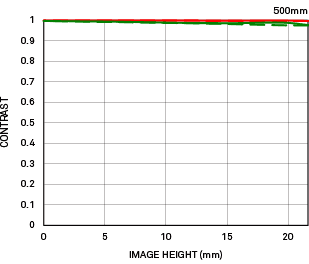

Geometrical MTF Chart

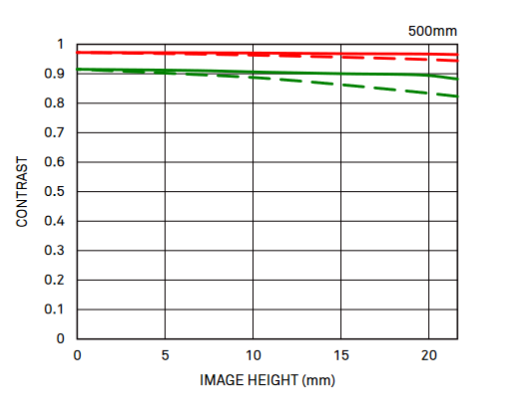

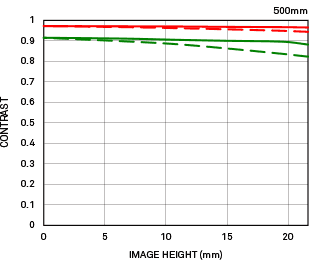

Diffraction MTF Chart
